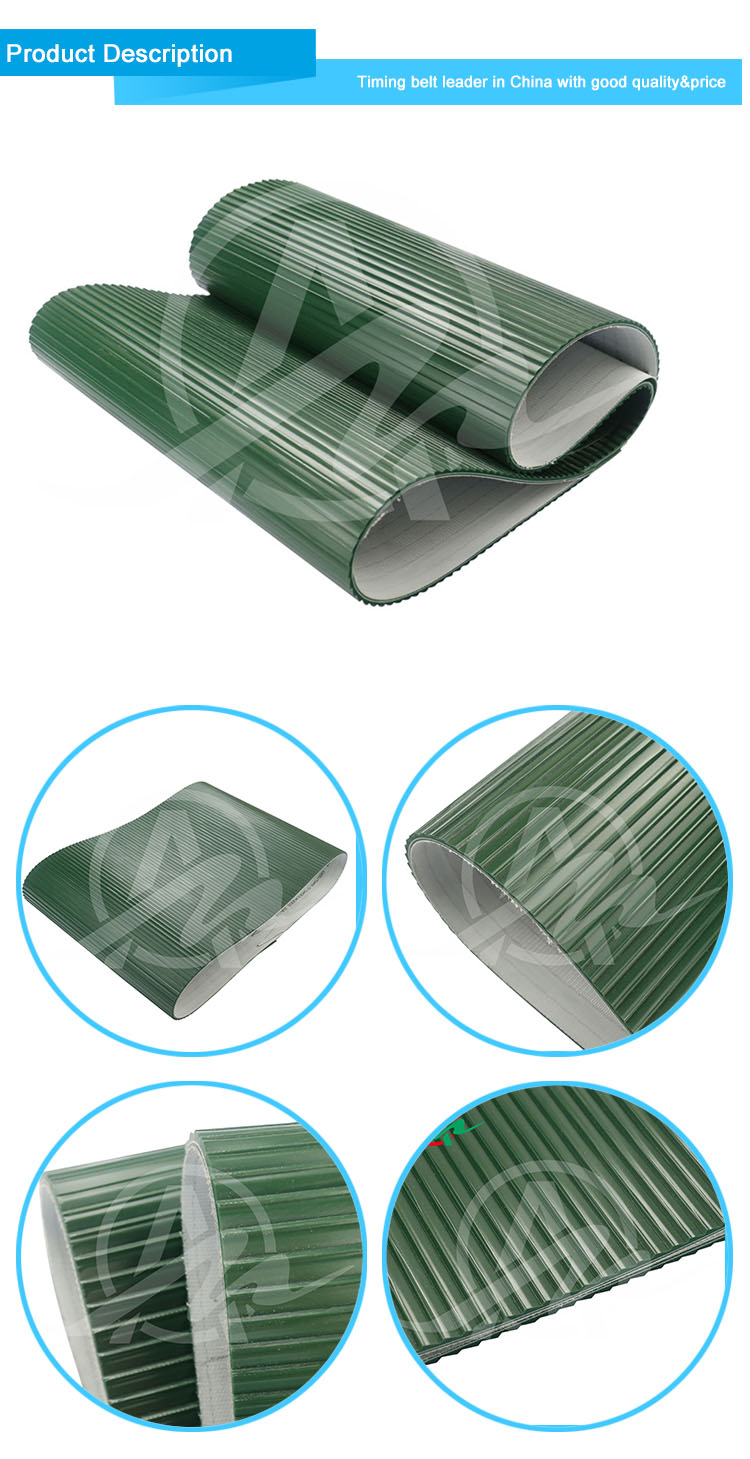

Customized PVC conveyor belt, Green wash board/slight sawteeth pattern belt
Customized PVC conveyor belt, Green wash board/slight sawteeth pattern belt
Detailed Parameters
Material: Fabric,PVC
Width Range: 4000MM
Pattern: Deep longitudinal groove
Customized for specification: Available for customized specification
Characteristic: Nonflammable,Anti-aging,High adsorption
Product Details
Description | Customized PVC conveyor belt, Green wash board/slight sawteeth pattern belt |
Size/Thickness | Availbale for customized according to the demands of customers |
Material | PVC, fabric |
Colors | White, black, Red, Various |
Ply | 1ply to 5 plies |
Working temperature | -10°C to +90°C |
Breaking Load | ≥50 N/mm to ≥100 N/mm, |
Tension for1% elongation | ≥4 N/mm to ≥16 N/mm |
Minimum pulley diameter | 10mm to 150mm |
Max width | 2000mm to 4000mm |
Characteristics | Aging proof, waterproof, prevent UVA, Ozone-resistant, highly resistant to oil, acid and alkali corrosion resistance |
Accessories Support | punch/ slotting / pattern / block / guide bar / profile |
Application | Stone, ceramic, glass, electronics, aluminum, tobacco, textile, logistics, printing, packaging, paper products processing industries etc. |
Remarks | Please contact with sales for the detail technial data of each belt |
